Class B

SINGLE LIFT UNITISED NAVIGATIONAL AIDS SYSTEM

Tideland’s Class B Single Lift system is a self-contained solar-powered light/fog signal unit. This unit is ideal for marking remote marine obstructions, such  as wellheads, reefs or offshore rocks  where mains power is unavailable.



The Class B Single Lift system meets or exceeds requirements for use in areas that require a 2NM white light and a 1/2NM fog signal.

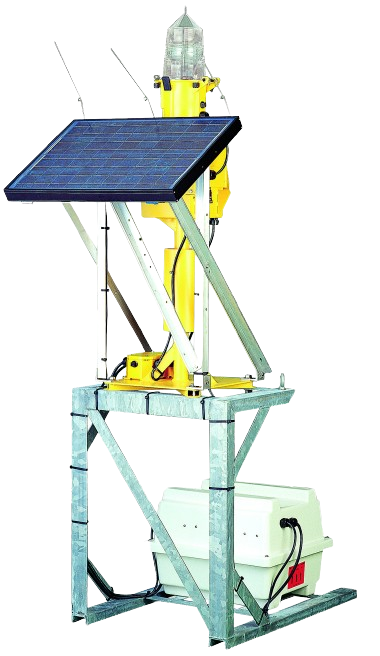

Unitized_Class_B-removebg-preview
Previous Next

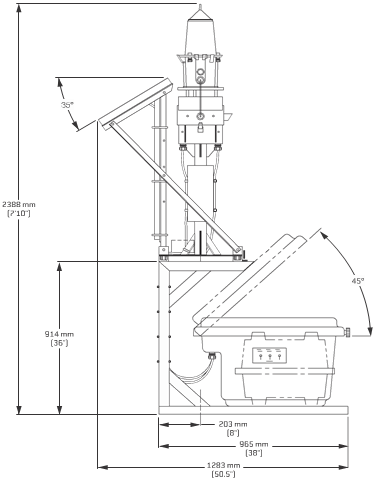

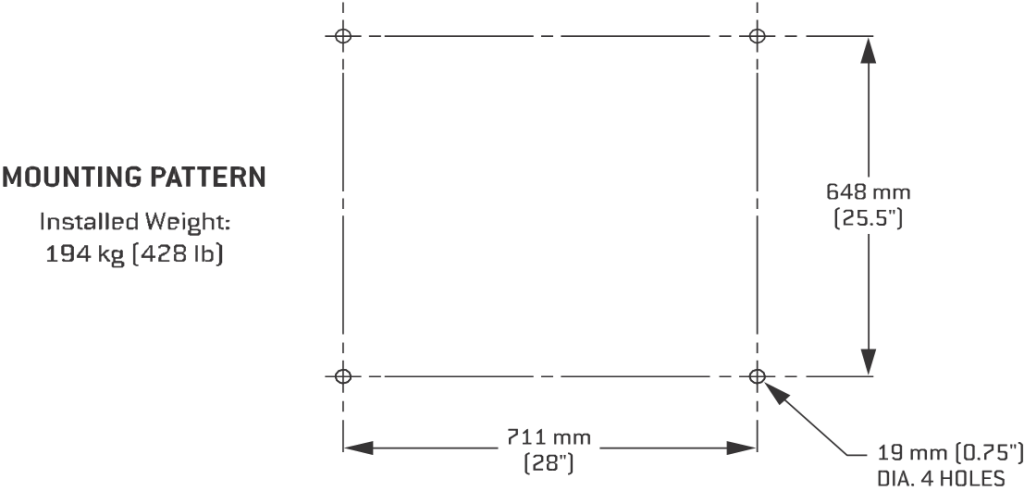

Unitized Class B Dimensions Test Run
    Characteristics

    • LANTERN – Tideland’s ML-155 MaxLumina® features its patented 155 mm acrylic Fresnel lens incorporating 38 optical elements.
    • FLASHER/LAMPCHANGERS – The Class B Single Lift ML-155 lantern utilizes either Tideland’s TF-3B MicroPower OMNIBUS® II, a completely automatic solid-state flasher and six-place lampchanger, or RETRO flasher, an LED replacement light source.
    • FOG SIGNAL – Tideland’s AB-26 Audiobeam®, U.S. Coast Guard- approved 1/2NM fog signal, with ECU-660 electronics, broadcasts a 360° sound beam in the horizon plane with a preselected code. This audible aid complies with the recommendations of IALA and is UL Listed for Class I, Division 2, Group D hazardous locations.
    • Full monitor and control access.
    • All approved IALA colors available.
    • POWER – Three 40 watt solar panels and seven V12MF energy cells (enclosed in a watertight fiberglass FG-12 battery box). The electric energy output from the solar  generator battery is separate for the fog signal  and the marine lantern. The energy system is sized for standalone service for continuous year-round operation.
