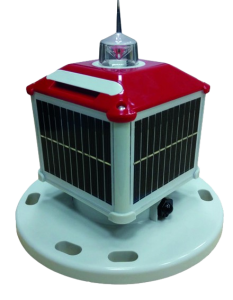

SolaMAX-65
Class 5 and 7 Self-Contained Lantern
The SolaMAX-65 is a self-contained lantern capable of ranges up to 5NM in the standard version and up to 7NM in the extended version (SolaMAX-65-T). Its compact design makes it the ideal self-contained lantern for many applications including inland waterways, buoys and offshore platform marking to provide years of maintenance-free operation.
Revolutionary optics and high efficiency solar panels make the SolaMAX-65 exceptionally suitable for
northern and southern latitudes and low solar radiation applications. The built-in IR receiver allows for full customisation of the power level, flash character, sunswitch setting and features a self test mode. A convenient magnetic switch is used for switching off, storage/sleep mode or regular operation.
- Options of battery capacity for demanding locations from 12Ah to 50Ah
- Optional GPS synchronization module
- Available in all IALA approved colors
- 256 user selectable flash characters
- Constant current power source for maximum LED life
- Magnetic On/Off Switch for quick deployment, hassle free storage and battery maintenance check
- User selectable power, flash character and Sunswitch settings via an optional IR controller
- Programming and self-test option with IR controller
- Full monitor and control capability via options of GSM, Satellite or AIS
- Internal AIS option
- Theft deterrent design
- Optional Power and Data ports for charging and programming
CONTROL & MONITORING
- Control: Via IR programmer
- Monitor: Options of GSM, Satellite or AIS
- Synchronization: GPS or hardwire options
- Colors: Red, green, yellow, white (blue upon special request)
- Visibility: 360° horizon (omnidirectional)
- Vertical divergence: 5°, 10°, 20° or 30° at 50%; ±1 degree
- Flash codes: Up to 256 codes, field selectable or via communication link
ELECTRICAL CHARACTERISTICS
- Voltage: 12VDC
- Solar panels – Standard: 4 × 4.2W
- Solar panels – “T” model: 4 × 8.5W
- Battery capacity – Standard: 12Ah or 18Ah Sealed Lead Acid
- Battery capacity – “T” model: 30Ah or 50Ah Sealed Lead Acid
- Battery type: Lead Acid
- Operating temperature: -40°C to +70°C
- Size – Standard: 275mm (10.8in) wide × 315mm (12.4in) high
- Size – “T” model: 275mm (10.8in) wide × 448mm (17.6in) high
- Weight – Standard with 12Ah battery: 7.8kg (17.1lb)
- Weight – Standard with 18Ah battery: 9.5kg (20.9lb)
- Weight – “T” model with 30Ah battery: 15.7kg (34.5lb)
- Weight – “T” model with 50Ah battery: 20.2kg (44.5lb)
- Mounting: 12 × 16mm (0.63in) × 25mm (0.98in) slots on 200mm (9.1in) bolt hole circle
- IP rating: IP66 and IP68
