TEST-NOVA-65-TEST

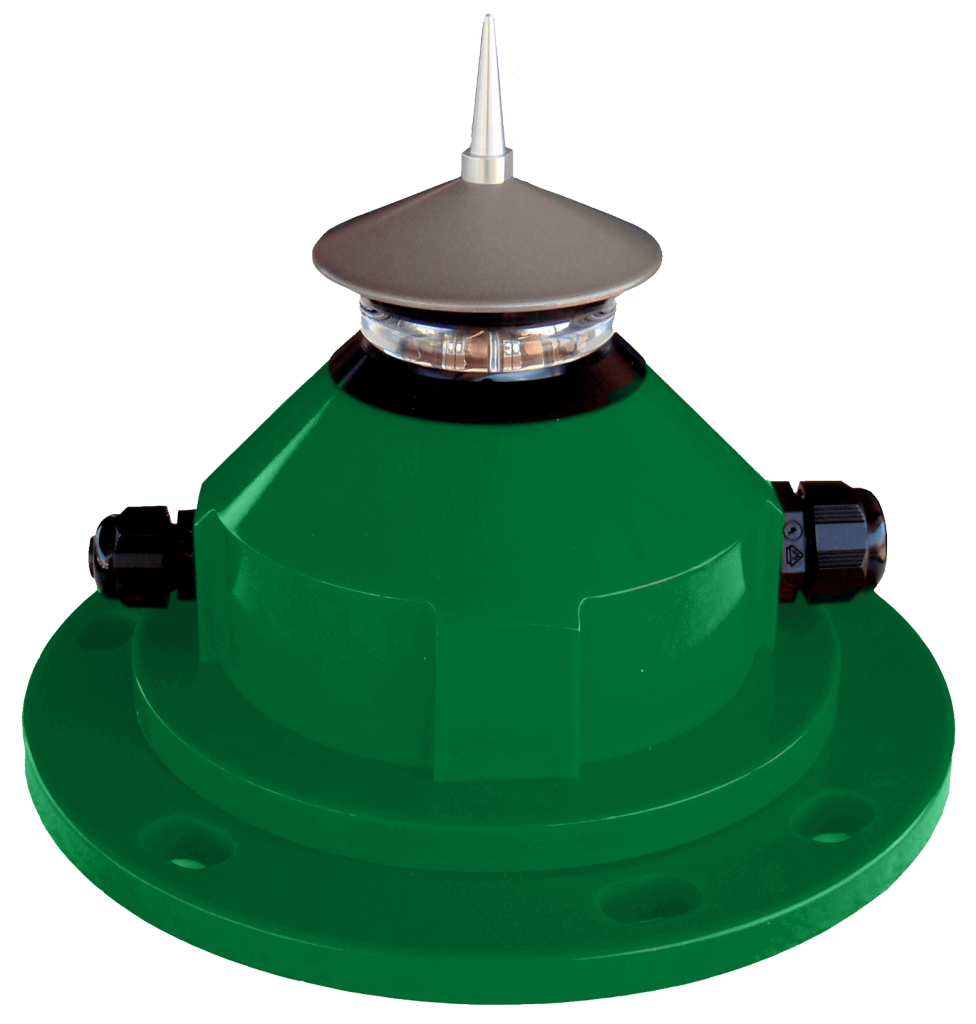

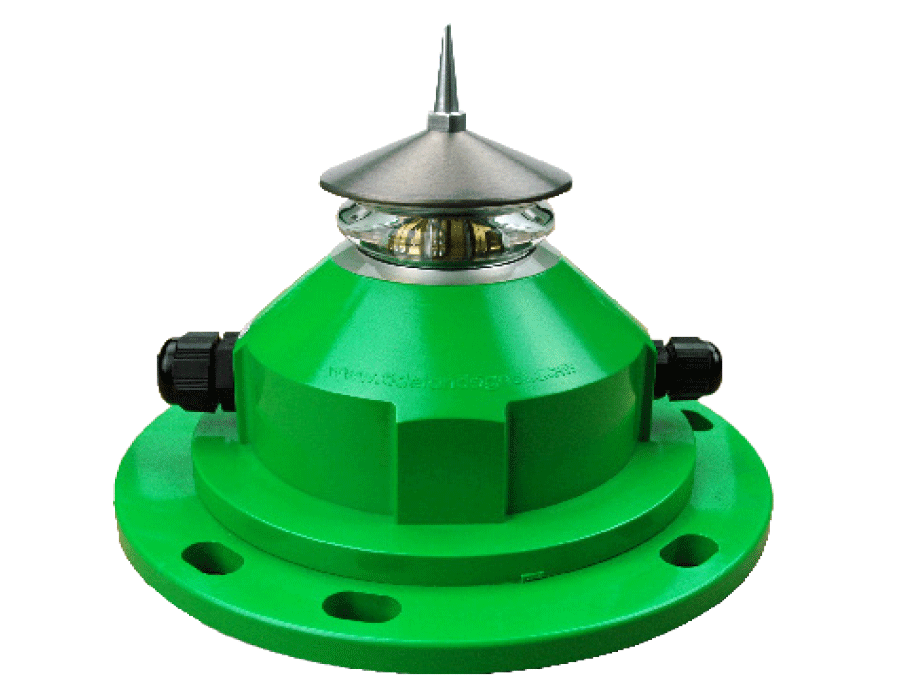

The Nova-65 features unique and proprietary optics which provide a 360° beam at 5°, 10°, 20° or 30° vertical divergence. Utilizing a highly efficient compact lens, the Nova-65 is a one of a kind, small, lightweight marine beacon. The 10° divergence lens is ideal for fixedd or floating aids to navigation while the 20° and 30° lenses provide exceptional performance on buoys. The 5° lens can be used to meet specific needs that require a much further range while still using a minimal amount of power. This general marine use (GMU) version is equipped with a polycarbonate housing, designed to withstand the harsh marine environment.
Key Features
- Multiple vertical divergence lens options (5°, 10°, 20° or 30°”) and IALA colours available
- User selectable power and flash code settings for multiple visual range performance
- GPS synchronization (option)
- Tideland’s proprietary SignalView™ program to set user options
- Full monitor and control capability
- A constant current power source provides maximum lifetime of LED’s
- Temperature compensated LED drive circuits ensure uniform brightness with ambient temperature change
- Proven long term reliability
Standards/certification
- Complies with IALA recommendation R0201, R0202, R0203, R0204 and R0205 (E-200) – Marine Signal light
Performance characteristics
- Effective intensity up to 1704cd
- Luminous range: up to 10.4NM at 0.74T
- IALA colours available: white, red, green and amber
- Horizontal divergence: 360°
- Vertical divergence: see table
- Flash code: up to 256 codes, field selectable
Physical characteristics
- Dimensions (L x W x H): 230 x 230 x 171 mm
- Weight: up to 077kg (1.7lbs) (depending on lens version)
- Degree of protection: IP66/IP68
- Operating temperature range: -40° to +70°C
Control & Monitoring
- Sun switch threshold: user selectable
- Hard Wire synchronization
- GPS synchronization (option)
- SignalView™ program to set user options
- Modbus (RS485) for programming and monitoring
