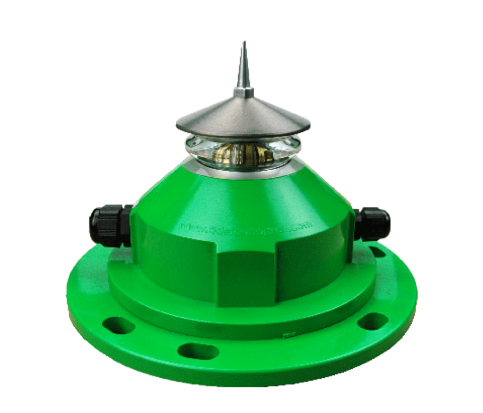

Nova-65
Led Marine Lantern
The Nova-65 features unique and proprietary optics which provide a 360° beam at 5°, 10°, 20° or 30° vertical divergence.
Utilizing a highly efficient compact lens, the Nova-65 is a one of a kind, small, lightweight marine beacon. The 10° divergence lens is ideal for fixed or floating aids to navigation while the 20° and 30° lenses provide exceptional performance on buoys. The 5° lens can be used to meet specific needs that require a much further range while still using a minimal amount of power.
Two options of housing are available for general marine use (GMU) and for NEC Class 1 Division 2: polycarbonate and a ruggedized metal version. For ATEX/IECEx (Category 3), housing is available in ruggedized metal only and with a 10° lens. Both housing options are designed to withstand the harsh marine environment including ice buildup in extremes of latitude and the high temperatures experienced along the equatorial plane.
IP-66 and IP-68 make Nova-65 the choice of professionals.
- User selectable power and flash code settings for multiple visual range performance
- Full monitor and control capability
- SignalView™ program to set user options
- Approved by USCG for class A, B and C offshore structures
- A constant current power source provides maximum lifetime of LEDs
- Temperature compensated LED drive circuits ensure uniform brightness with ambient temperature change
- Hard Wire Synchronization
- Proven Long Term Reliability
- Intensity exceeds candle power requirements by 33CFR 118.60
- Complies with IALA recommendations R0201, R0202, R0203, R0204, and R0205
- Compatible with monitoring via AIS, GSM, and SRM
OPTIONS
- GPS Synchronisation
- 5°, 10°, 20° or 30° vertical divergence lens
- AC input (GMU version only)
- Modbus Communication Option
ELECTRICAL
- Input voltage – General Marine Use (GMU): 9 to 36VDC, 85–264VAC (AC version)
- Input voltage – Hazardous Area: 9.5 to 32VDC
- Quiescent current – Light only: <2mA
- Quiescent current – With GPS: <3mA
- Synchronisation – GMU & NEC Class 1 Division 2: GPS (plastic version) or hard wire options
- Synchronisation – ATEX/IECEx (Category 3): Hard wire only
- Monitor and control: Capable
PERFORMANCE CHARACTERISTICS
- Power consumption – Nova-65: Variable up to 10W (2W for EX version)
- Power setting: Field selectable
- Sunswitch threshold: Adjustable
- Colours available: Red, green, yellow, white (blue by special request)
- Vertical divergence – GMU & NEC Class 1 Division 2: 5°, 10°, 20° and 30°, all colours
- Vertical divergence – ATEX/IECEx (Category 3): 10°, all colours
- Flash codes: Up to 256 codes, field selectable
- Visibility: 360° horizon (omnidirectional)
PHYSICAL CHARACTERISTICS
- Base mounting: 230mm (9.1in) maximum diameter
- Height: 171mm (6.7in)
- Weight – Polycarbonate: 0.77kg (1.7lbs)
- Weight – Aluminum: 1.97kg (4.3lbs)
- Operating temperature – GMU & NEC Class 1 Division 2: -40°C to +70°C
- Operating temperature – ATEX/IECEx (Category 3): -40°C to +60°C
- Storage temperature: -40°C to +70°C
- IP rating – GMU & NEC Class 1 Division 2: IP66 / IP68
- IP rating – ATEX/IECEx (Category 3): IP66
