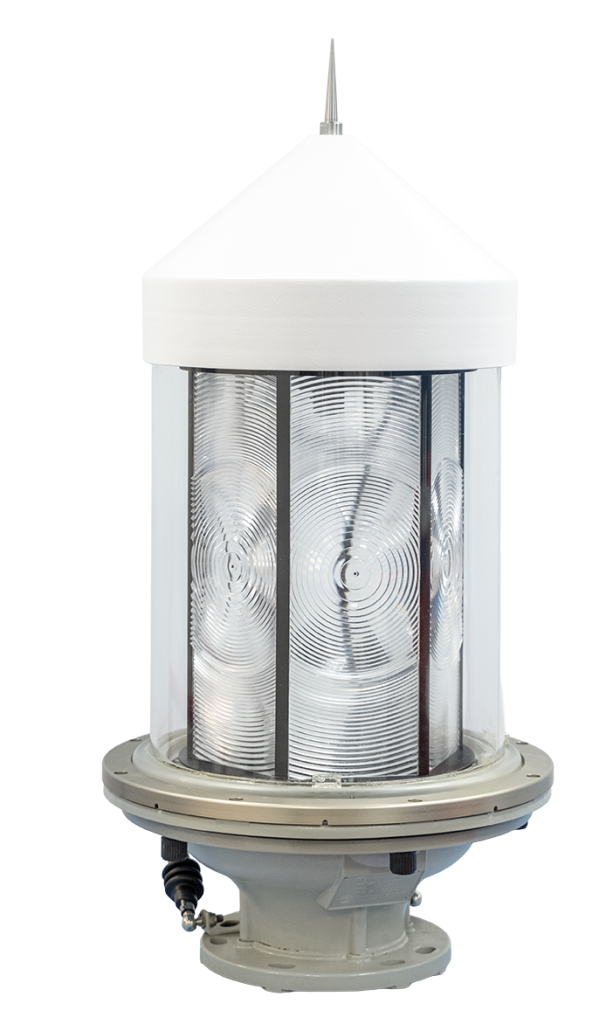

TRB-220 is a high intensity rotating beacon capable of providing simple and complex flash characters. This beacon can be configured to provide high efficiency in effective intensities using a wide range of low wattage marine signal lamps as well as LED light source.

Tideland Signal’s TRB-220 MaxLumina® is excellent in battery operations where a proper charge level can be maintained through photovoltaic charging from solar panels. A 6-lens  carousel, light source, gearless direct drive motor and electronic control module are contained in a watertight aluminium and fiberglass housing (IP65) with acrylic glazing and stainless steel fasteners.

Mounted on a light tower of proper height, TRB- 220 gives coastal shipping up to a 20NM range light (@ T = 0.74).

Characteristics

  • 6-lens carousel, consisting of a flash panel design with catadioptric prisms
  • Operates with up to a 110W lamp without need for ventilation or cooling fans
  • Brushless DC direct drive motor designed for smooth operation at low RPM
  • Over 16 preprogrammed rotation periods, ranging from a period of 6 to 120 seconds
  • 25 years of useful life
  • Available in all IALA colours
  • No scheduled maintenance for life of motor
  • Accommodates Tideland’s TF-3B MicroPower OMNIBUS® II 6-place lampchanger, MaxiHALO-60RB (LED) or MLED-Retro
  • Automatic switchover to standby lantern
  • Full monitor and control access
